Raymarine T70164 EV-DBW Evolution Autopilot F/ Drive-by-Wire System

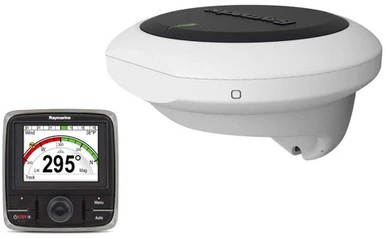

The Raymarine T70164 EV-DBW Evolution Autopilot for Drive-by-Wire System combines the EV-2 for Drive-by-Wire Propulsion, p70R Autopilot Control Head, Evolution SeaTalk^ng Cabling Kit, and Evolution EV-2 SeaTalk^ng Cabling Kit, to give you everything you need in an Autopilot System.

RA3048HD HD Open Array Radar

The Raymarine T70164 EV-DBW Evolution Autopilot for Drive-by-Wire System is designed for the latest drive-by-wire steering systems. The EV-2 connects directly to Raymarine’s SeaTalk^ng bus, and also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems:

• Teleflex Optimus Systems
• ZF Pod Drives
• Yanmar VC10 and JC10 (Joystick) Control Systems
• Volvo IPS* and Volvo Aquamatic

A single CAN Bus connection to the EV-2 eliminates the need for an ACU, which further simplifies the installation.

*Optional Volvo IPS gateway required and additional cabling.

p70R Autopilot Control Head (Power)

The p70R autopilot control head is ideal for power craft with a rotary control dial and push buttons. The Advanced LED backlighting equates to low power consumption and vibrant contrast and colors. Wide vertical and horizontal viewing angles mean the display can be seen clearly even from acute positions.

The p70R control head features the LightHouse user interface and a start up wizard that will help you to configure your pilot easily and quickly.

R70160 Evolution SeaTalk^ng Cabling Kit

• (1) SeaTalk^ng Power Cable (0.4m)
• (1) SeaTalk^ng Spur Cable (0.4m)
• (1) SeaTalk^ng Backbone Cable (5m)
• (2) SeaTalk^ng T-piece Connector
• (1) SeaTalk^ng 5-way Connector Block
• (2) SeaTalk^ng Terminator

R70192 Evolution EV-2 SeaTalk^ng Cabling Kit

• (1) SeaTalk^ng Power Cable (0.4m)
• (2) SeaTalk^ng Terminator
• (2) DeviceNet/Seatalk^ng Adaptor Cable (Female)
